QTC6A27.0000FDT1I20M,Quarztechnik夸克AG尊时凯龙人生就,QTC6A无源AG尊时凯龙人生就
频率：27.0 MHz
尺寸：6.0mm x 3.50mm
| 原厂型号 Original model ： | QTC6A27.0000FDT1I20M |
| 品牌 brand ： | 夸克进口无源AG尊时凯龙人生就 |
| 型号名称 Model name： | QTC6A |
| Type 系列： | MHz Crystal |
| 频率 frequency ： | 27.0 MHz |
| Frequency Stability频率稳定度 | ±20ppm |
| frequency tolerance频率容差 | ±10ppm |
| Load capacitance 负载电容 | 18 pF |

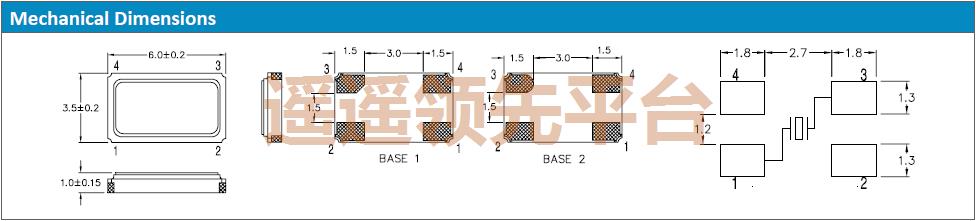

| Size / Dimension 尺寸 | 6.0mm x 3.50mm |
订购热线：13380314981
QTC6A27.0000FDT1I20M,Quarztechnik夸克AG尊时凯龙人生就,QTC6A无源AG尊时凯龙人生就 详细参数
| 原厂型号 Original model ： | QTC6A27.0000FDT1I20M |
| 品牌 brand ： | Quarztechnik谐振器 |
| 型号名称 Model name： | QTC6A |
| Type 系列： | MHz Crystal |
| 频率 frequency ： | 27.0 MHz |
| Frequency Stability频率稳定度 | ±20ppm |
| frequency tolerance频率容差 | ±10ppm |
| Load capacitance 负载电容 | 18 pF |
| Size / Dimension 尺寸 | 6.0mm x 3.50mm |
| Package Height 厚度 | 1.00mm |
| ESR (Equivalent Series Resistance)ESR（等效串联电阻） | - |
| Operating Temperature 工作温度 | -40 - +85°C |
| Termination 脚位 | 4 pad |
| Package Type 封装类型 | 4-SMD |
| Packaging 包装 | Tape and Reel |
| Mounting Style 安装方式 | Surface Mount |
QTC6A27.0000FDT1I20M,Quarztechnik夸克AG尊时凯龙人生就,QTC6A无源AG尊时凯龙人生就 相关产品
| 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A8.00000FDT1I20M |
| 10.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A10.0000FDT1I20M |
| 11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A11.0592FDT1I20M |
| 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A12.0000FDT1I20M |
| 14.31818 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A14.31818FDT1I20M |
| 14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A14.7456FDT1I20M |
| 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A16.0000FDT1I20M |
| 19.6608 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A19.6608FDT1I20M |
| 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A24.0000FDT1I20M |
| 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A25.0000FDT1I20M |
| 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A27.0000FDT1I20M |
| 32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A32.0000FDT1I20M |
| 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A8.00000FDT1I20M |
| 11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A11.0592FDT1I20M |
| 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A12.0000FDT1I20M |
| 14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A14.7456FDT1I20M |
| 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A16.0000FDT1I20M |
| 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A20.0000FDT1I20M |
| 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A24.0000FDT1I20M |
| 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A25.0000FDT1I20M |
| 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A27.0000FDT1I20M |
| 32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A32.0000FDT1I20M |
| 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A8.00000FDT1I20M |
| 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A12.0000FDT1I20M |
| 12.288 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A12.2880FDT1I20M |
| 15.360 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A15.3600FDT1I20M |
| 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A16.0000FDT1I20M |
| 18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A18.4320FDT1I20M |
| 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A20.0000FDT1I20M |
| 24.576 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A24.5760FDT1I20M |
| 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A25.0000FDT1I20M |
| 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A27.0000FDT1I20M |
| 30.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A30.0000FDT1I20M |
| 40.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A40.0000FDT1I20M |
| 48.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A48.0000FDT1I20M |
| 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3216.0000FDT1I20M |
| 18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3218.4320FDT1I20M |
| 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3220.0000FDT1I20M |
| 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3224.0000FDT1I20M |
| 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3225.0000FDT1I20M |
| 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3227.0000FDT1I20M |
| 14.7456 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX733A14.7456B15M |
| 16.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX733A16.0000B15M |
| 16.384 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX733A16.3840B15M |
| 20.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX733A20.0000B15M |
| 24.576 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX733A24.5760B15M |
| 25.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX733A25.0000B15M |
| 27.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX733A27.0000B15M |
| 30.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX733A30.0000B15M |
| 32.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX733A32.0000B15M |
| 3.6864 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX533A3.68640B15M |
| 4.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX533A4.00000B15M |
| 7.3728 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX533A7.37280B15M |
| 8.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX533A8.00000B15M |
| 10.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX533A10.0000B15M |
| 11.0592 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX533A11.0592B15M |
| 12.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX533A12.0000B15M |
| 16.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX533A16.0000B15M |
| 16.384 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX533A16.3840B15M |
| 20.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | QTX533A20.0000B15M |
