FCX2S03200010I1X无源AG尊时凯龙人生就,Fujicom富士通AG尊时凯龙人生就,FCX-2SAG尊时凯龙人生就

当前位置：首页 » 日产进口AG尊时凯龙人生就 » FujicomAG尊时凯龙人生就 » FCX2S03200010I1X无源AG尊时凯龙人生就,Fujicom富士通AG尊时凯龙人生就,FCX-2SAG尊时凯龙人生就

prevnext

FCX2S03200010I1X无源AG尊时凯龙人生就,Fujicom富士通AG尊时凯龙人生就,FCX-2SAG尊时凯龙人生就

频率：16 ~ 96 MHz

尺寸：2.00mm x 1.60mm

原厂型号 Original model ：	FCX2S03200010I1X
品牌 brand ：	FujicomAG尊时凯龙人生就
型号名称 Model name：	FCX-2S
Type 系列：	MHz Crystal
频率 frequency ：	16 ~ 96 MHz
Frequency Stability频率稳定度	±10ppm
frequency tolerance频率容差	±80ppm
Load capacitance 负载电容	10pF

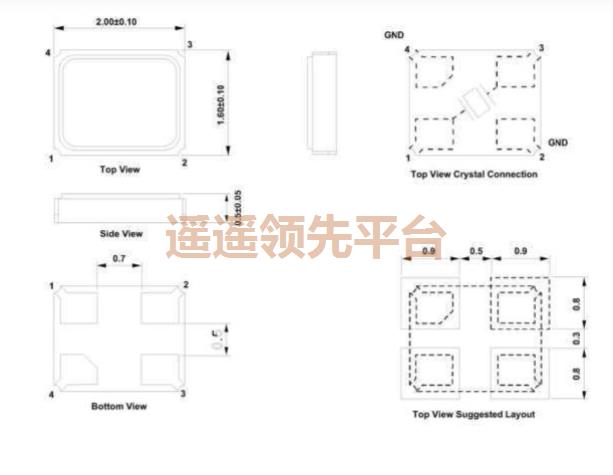

Size / Dimension 尺寸	2.00mm x 1.60mm

订购热线：13380314981

FCX2S03200010I1X无源AG尊时凯龙人生就,Fujicom富士通AG尊时凯龙人生就,FCX-2SAG尊时凯龙人生就详细参数

原厂型号 Original model ：	FCX2S03200010I1X
品牌 brand ：	FujicomAG尊时凯龙人生就
型号名称 Model name：	FCX-2S
Type 系列：	MHzAG尊时凯龙人生就
频率 frequency ：	16 ~ 96 MHz
Frequency Stability频率稳定度	±10ppm
frequency tolerance频率容差	±80ppm
Load capacitance 负载电容	10pF
Size / Dimension 尺寸	2.00mm x 1.60mm
Package Height 厚度	0.55mm
ESR (Equivalent Series Resistance)ESR（等效串联电阻）	-
Operating Temperature 工作温度	-40°C ~ 125°C
Termination 脚位	4 pad
Package Type 封装类型	4-SMD
Packaging 包装	Tape and Reel
Mounting Style 安装方式	Surface Mount

FCX2S03200010I1X无源AG尊时凯龙人生就,Fujicom富士通AG尊时凯龙人生就,FCX-2SAG尊时凯龙人生就相关产品

FCX2M03000010I1X	FujicomAG尊时凯龙人生就	FCX-2M	MHz Crystal	-	±10ppm	±80ppm	10pF
FCX2M01200012I1X	FujicomAG尊时凯龙人生就	FCX-2M	MHz Crystal	-	±10ppm	±80ppm	12pF
FCX2M02400020I1X	FujicomAG尊时凯龙人生就	FCX-2M	MHz Crystal	-	±10ppm	±80ppm	20pF
FCX2M03200012I1X	FujicomAG尊时凯龙人生就	FCX-2M	MHz Crystal	-	±10ppm	±80ppm	12pF
FCX2M02600009I1X	FujicomAG尊时凯龙人生就	FCX-2M	MHz Crystal	-	±10ppm	±80ppm	9pF
FCX2M02400012I1X	FujicomAG尊时凯龙人生就	FCX-2M	MHz Crystal	-	±10ppm	±80ppm	12pF
FCX2M01600008I1X	FujicomAG尊时凯龙人生就	FCX-2M	MHz Crystal	-	±10ppm	±80ppm	8pF
FCX2M01600009I1X	FujicomAG尊时凯龙人生就	FCX-2M	MHz Crystal	-	±10ppm	±80ppm	9pF
FCX2M04000015I1X	FujicomAG尊时凯龙人生就	FCX-2M	MHz Crystal	-	±10ppm	±80ppm	15pF
FCX2S03200010I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	10pF
FCX2S02400020I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	20pF
FCX2S02600009I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	9pF
FCX2S02600010I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	10pF
FCX2S03200012I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	12pF
FCX2S01600009I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	9pF
FCX2S01600012I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	12pF
FCX2S02400012I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	12pF
FCX2S02500020I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	20pF
FCX2S02700020I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	20pF
FCX2S03840008I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	8pF
FCX2S03200008I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	8pF
FCX2S04000015I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	15pF
FCX2S03000010I1X	FujicomAG尊时凯龙人生就	FCX-2S	MHz Crystal	-	±10ppm	±80ppm	10pF
FCX7M03000030Y5J	FujicomAG尊时凯龙人生就	FCX-7M	MHz Crystal	30 MHz	±30ppm	±30ppm	30pF
FCX7M00737216Y5J	FujicomAG尊时凯龙人生就	FCX-7M	MHz Crystal	7.3728 MHz	±30ppm	±30ppm	16pF
FCX7M02400012Y5D	FujicomAG尊时凯龙人生就	FCX-7M	MHz Crystal	24 MHz	±10ppm	±30ppm	12pF
FCX7M00737208Y5J	FujicomAG尊时凯龙人生就	FCX-7M	MHz Crystal	7.3728 MHz	±30ppm	±30ppm	8pF
FCX7M03000016Y5D	FujicomAG尊时凯龙人生就	FCX-7M	MHz Crystal	30 MHz	±10ppm	±30ppm	16pF
FCX7M02400009Y5J	FujicomAG尊时凯龙人生就	FCX-7M	MHz Crystal	24 MHz	±30ppm	±30ppm	-
FCX7M03200008E2G	FujicomAG尊时凯龙人生就	FCX-7M	MHz Crystal	32 MHz	±20ppm	±15ppm	8pF
FCX7M01600016Y5D	FujicomAG尊时凯龙人生就	FCX-7M	MHz Crystal	16 MHz	±10ppm	±30ppm	16pF
FCX7M02400012Y2J	FujicomAG尊时凯龙人生就	FCX-7M	MHz Crystal	24 MHz	±30ppm	±15ppm	12pF
FCX7M01600020Y1J	FujicomAG尊时凯龙人生就	FCX-7M	MHz Crystal	16 MHz	±30ppm	±10ppm	20pF
FCX7M01600016Y5L	FujicomAG尊时凯龙人生就	FCX-7M	MHz Crystal	16 MHz	±50ppm	±30ppm	16pF
FCX7M03000016Y5J	FujicomAG尊时凯龙人生就	FCX-7M	MHz Crystal	30 MHz	±30ppm	±30ppm	16pF
FCX9S01356030P6L	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	13.56 MHz	±50ppm	±50ppm	30pF
FCX9S01000012E5L	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	10 MHz	±50ppm	±30ppm	12pF
FCX9S05000018E1D	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	50 MHz	±10ppm	±10ppm	18pF
FCX9S04800010E1D	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	48 MHz	±10ppm	±10ppm	10pF
FCX9S02400020Y5L	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	24 MHz	±50ppm	±30ppm	20pF
FCX9S01000012Y5L	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	10 MHz	±50ppm	±30ppm	12pF
FCX9S01350020Y5L	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	13.5 MHz	±50ppm	±30ppm	20pF
FCX9S01356012E5J	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	13.56 MHz	±30ppm	±30ppm	12pF
FCX9S00983020Y5L	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	9.8304 MHz	±50ppm	±30ppm	20pF
FCX9S03750012E1D	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	37.5 MHz	±10ppm	±10ppm	12pF
FCX9S01638412E5J	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	16.384 MHz	±30ppm	±30ppm	12pF
FCX9S00819218Y5L	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	8.192 MHz	±50ppm	±30ppm	18pF
FCX9S04800010E2D	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	48 MHz	±10ppm	±15ppm	10pF
FCX9S02457612E5J	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	24.576 MHz	±30ppm	±30ppm	12pF
FCX9S04800018E5J	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	48 MHz	±30ppm	±30ppm	18pF
FCX9S01000020E5J	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	10 MHz	±30ppm	±30ppm	20pF
FCX9S03600012E5J	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	36 MHz	±30ppm	±30ppm	12pF
FCX9S01356020E3J	FujicomAG尊时凯龙人生就	*	-	-	-	-	-
FCX9S01600020Y5L	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	16 MHz	±50ppm	±30ppm	20pF
FCX9S01235220Y5L	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	12.352 MHz	±50ppm	±30ppm	20pF
FCX9S01000012E5J	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	10 MHz	±30ppm	±30ppm	12pF
FCX9S01600030D5L	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	16 MHz	±50ppm	±30ppm	30pF
FCX9S01843212E5L	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	18.432 MHz	±50ppm	±30ppm	12pF
FCX9S01638412Y5J	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	16.384 MHz	±30ppm	±30ppm	12pF
FCX9S01843218Y5L	FujicomAG尊时凯龙人生就	FCX-9S	MHz Crystal	18.432 MHz	±50ppm	±30ppm	18pF
